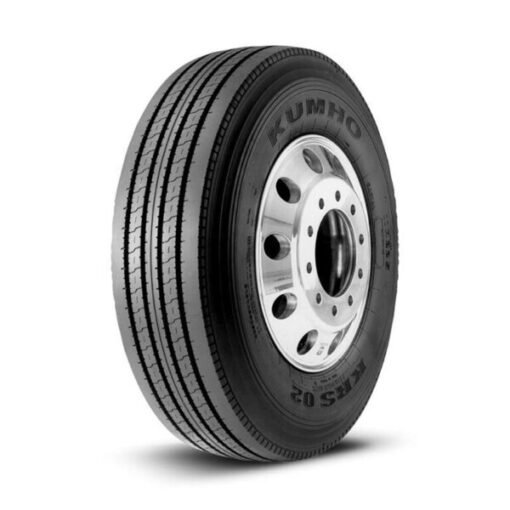

12R22.5 16PR H Kumho KRS02 All Position / Steer TL
The Kumho KRS02 12R22.5 16PR H is a mid-range, all-position radial tire specifically engineered for the steer axle of commercial vehicles. It is designed for highway terrain and is suitable for regional, pickup, and delivery applications.
Specifications
| Part No. | 2173423 |
|---|---|
| Size | 12R22.5 |
| Ply Rating | 16PR |
| Brand | Kumho |
| Model | KRS02 |
| Position | |
| Tread Depth (32nd) | 20 |
| Standard Rim / Flange | 9 |
| Inflation Pressure (psi) | 120 |
| Max Load (lbs) | 7390 |
| Max Dual Load (lbs) | 6780 |
| Overall Diameter (in) | 42.8 |
| Overall Width (in) | 11.6 |
| F.E.T | 36.76 |
| Weight (lbs) | 134.3 |
| OTRUSA.COM UPC | 655222681119 |
| Bias / Radial | radial |
| Dimension (LxWxH) | 42.8 x 42.8 x 11.6 |
| Load Range | H |
| Standard Rim Display | 9 |
| TT / TL / Solid / Foam Filled | TL |
| Size Search | 12225 |
Key Features & Benefits
- Tread Centering Groove (TCG) Technology: This feature helps ensure uniform tread wear and improves the accuracy of setting toe-in.
- Symmetric 5-Rib Design: The close-packed center tread blocks and 5-rib pattern enhance steering response and provide consistent grip in dry, wet, and winter conditions.
- Hydroplaning Resistance: Four wide circumferential grooves are designed to disperse water and slush, improving wet-weather traction.
- Durability: The tire features a stronger compound and reinforced internal structure that resists deformation under heavy loads, leading to a longer original tread life.
- Stone Ejectors: Central grooves include stone ejectors to prevent stone drilling and casing damage.
